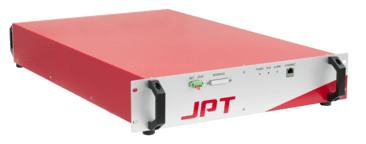

CW-Laser | Multimode | PL d
CW fiber laser sources with multimode fiber and integrated safety architecture (EN ISO 13849-1,
Performance Level d) combine the proven beam quality and power stability of our
established CW-Multimode-Series with an enhanced safety concept.
Due to
their power stability and excellent optical characteristics, they are
particularly suited for precise laser cutting and welding. At the same time,
they are very economical due to their high energy efficiency and very low
maintenance requirements.
The systems
cover a power range from 500 W to 20 kW and can be configured with fiber core diameters between 50 µm and 600 µm, depending on the application requirements.
This enables high processing speeds and reliable results.
CW-Laser | Multimode | PL d
| Model Name | Wavelength | Nominal Output Power CW | Beam Parameter Product (BPP) (≤) | Modulation Frequency | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CW-500MM-L-PLD | 1080 nm | 510 W | 1.7 mm*mrad / 4 mm*mrad / 6 mm*mrad | 1 Hz - 20 kHz | 28 kg | 571 mm | 135 mm | 482 mm | Water | ||
| CW-1000MM-L-PLD | 1080 nm | 1,020 W | 1.7 mm*mrad / 4 mm*mrad / 6 mm*mrad | 1 Hz - 20 kHz | 30 kg | 571 mm | 135 mm | 482 mm | Water | ||
| CW-1500MM-L-PLD | 1080 nm | 1,530 W | 1.7 mm*mrad / 4 mm*mrad / 6 mm*mrad | 1 Hz - 20 kHz | 32 kg | 571 mm | 135 mm | 482 mm | Water | ||
| CW-2000MM-L-PLD | 1080 nm | 2,050 W | 1.7 mm*mrad / 4 mm*mrad / 6 mm*mrad | 1 Hz - 20 kHz | 36 kg | 571 mm | 135 mm | 482 mm | Water | ||
| CW-3000MM-L-PLD | 1080 nm | 3,000 W | 1.7 mm*mrad / 3 mm*mrad / 6.4 mm*mrad / 8.33 mm*mrad | 1 Hz - 20 kHz | 46 kg | 738 mm | 135 mm | 482 mm | Water | ||
| CW-4000MM-L-PLD | 1080 nm | 4,000 W | 1.7 mm*mrad / 3 mm*mrad / 6.4 mm*mrad / 8.33 mm*mrad | 1 Hz - 20 kHz | 48 kg | 738 mm | 135 mm | 482 mm | Water | ||
| CW-6000MM-L-PLD | 1080 nm | 6,000 W | 2.2 mm*mrad / 4 mm*mrad / 7.3 mm*mrad / 8.3 mm*mrad / 24 mm*mrad / 33.3 mm*mrad | 1 Hz - 5 kHz | 210 kg | 1,120 mm | 797 mm | 674 mm | Water | ||
| CW-8000MM-L-PLD | 1080 nm | 8,000 W | 2.2 mm*mrad / 4 mm*mrad / 7.3 mm*mrad / 8.3 mm*mrad / 24 mm*mrad / 33.3 mm*mrad | 1 Hz - 5 kHz | 250 kg | 1,120 mm | 797 mm | 674 mm | Water | ||
| CW-12000MM-L-PLD | 1080 nm | 12,000 W | 2.2 mm*mrad / 4 mm*mrad / 7.3 mm*mrad / 8.3 mm*mrad / 24 mm*mrad / 33.3 mm*mrad | 1 Hz - 5 kHz | 350 kg | 1,337 mm | 1,253 mm | 600 mm | Water | ||
| CW-20000MM-L-PLD | 1080 nm | 20,000 W | 4 mm*mrad / 7.3 mm*mrad / 8.3 mm*mrad / 24 mm*mrad / 33.3 mm*mrad | 1 Hz - 5 kHz | 865 kg | 1,250 mm | 1,140 mm | 935 mm | Water |
