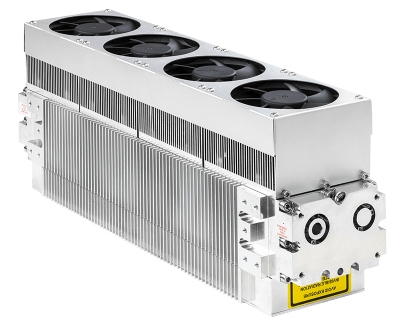

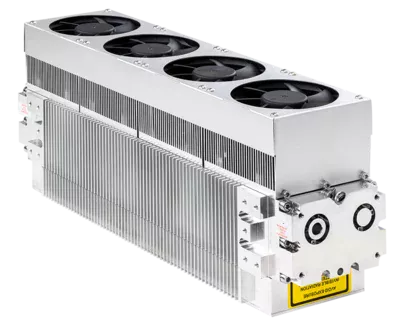

VJ-C30A [9.3]

VJ-C30A [9.3]

• Compact air-cooled CO2 laser, 17 Watt
• CW and modulated operation at 9,300 nm
• High reliability for industrial use
• Outstanding cost-effectiveness

Download Datasheet Request Information

Applications

Printed Circuit Boards
marking

Plastics
marking
engraving
cutting
structuring

Ceramics
marking
structuring

Glass/Crystal
marking

Foils/Labels
cutting

Technical Specifications

General
Wavelength	9300 nm
Mechanical Dimensions Width	91.5 mm
Mechanical Dimensions Depth	357 mm
Mechanical Dimensions Height	140 mm
Net Weight	6.6 kg

Laser
Beam Quality	1.2 <M²
Nominal Output Power pulsed	17 W
Modulation Frequency	1 - 25 kHz
Beam Diameter D4σ	1.8 mm
Laser Operation Mode	CW, modulated
Output Type	Directbeam

Cooling / Temp.
Cooling Method	Air

Model Name	Wavelength	Nominal Output Power pulsed	Beam Quality	Maximum Pulse Energy	Maximum Pulse Peak Power	Modulation Frequency	Net Weight	Mechanical Dimensions Depth	Mechanical Dimensions Height	Mechanical Dimensions Width	Cooling Method	Inquiry	Detail
VJ-C30A [9.3]	9300 nm	17 W	1.2 <M²			1 - 25 kHz	6.6 kg	357 mm	140 mm	91.5 mm	Air
VJ-C30A [10.6]	10600 nm	30 W	1.2 <M²			1 - 25 kHz	6.6 kg	357 mm	140 mm	91.5 mm	Air
VJ-C80W [9.3]	9300 nm	80 W	1.2 <M²			1 - 100 kHz	12.9 kg	565.6 mm	154.5 mm	143 mm	Water
VJ-C80W [10.6]	10600 nm	80 W	1.2 <M²			1 - 100 kHz	12.9 kg	565.6 mm	154.5 mm	143 mm	Water
VJ-C100W [9.3]	9300 nm	100 W	1.2 <M²			1 - 100 kHz	13.9 kg	565.6 mm	154.5 mm	143 mm	Water
VJ-C100W [10.6]	10600 nm	100 W	1.2 <M²			1 - 100 kHz	13.9 kg	565.6 mm	154.5 mm	143 mm	Water
VJ-C150W [9.3]	9300 nm	140 W	1.5 <M²	190 mJ	350 W	1 - 50 kHz	22.5 kg	853 mm	196.4 mm	151.7 mm	Water
VJ-C150W [10.6]	10600 nm	150 W	1.5 <M²	190 mJ	375 W	1 - 50 kHz	22.5 kg	853 mm	196.4 mm	151.7 mm	Water

Series information
