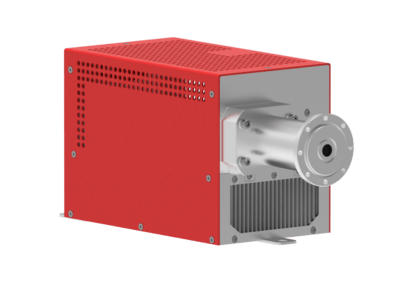

UV-2-A-AIO
• Especially compact and lightweight design for easy integration
• Excellent beam quality for precise processing of sensitive materials
• Ideal for fine marking, engraving, and micro-structuring
• Excellent beam quality for precise processing of sensitive materials
• Ideal for fine marking, engraving, and micro-structuring
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 355 nm |
| Mechanical Dimensions Width | 114 mm |
| Mechanical Dimensions Depth | 200.5 mm |
| Mechanical Dimensions Height | 139 mm |
| Net Weight | 4.32 kg |
| Laser | |
|---|---|
| Beam Quality | 1.25 <M² |
| Maximum Pulse Energy | 0.07 mJ @ 30 kHz |
| Maximum Pulse Peak Power | 4 kW |
| Nominal Output Power pulsed | 2 W @ 30 kHz |
| Adjustable Pulse Width | No |
| Pulse Frequency | 20 - 100 kHz |
| Beam Diameter D4σ(only available with pre-installed beam expander 6x / 10x) | 0.45 mm |
| Laser Operation Mode | Pulsed |
| Output Type | Directbeam |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Air |
355 nm | Air Cooled
| Model Name | Wavelength | Nominal Output Power pulsed | Beam Quality | Maximum Pulse Energy | Maximum Pulse Peak Power | Pulse Frequency | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UV-2-A-AIO | 355 nm | 2 W @ 30 kHz | 1.25 <M² | 0.07 mJ @ 30 kHz | 4 kW | 20 - 100 kHz | 4.32 kg | 200.5 mm | 139 mm | 114 mm | Air | ||
| UV-3-A-AIO | 355 nm | 3 W @ 40 kHz | 1.2 <M² | 75 µJ @ 40 kHz | 6 kW | 20 - 150 kHz | 6.2 kg | 313.5 mm | 126.2 mm | 144.6 mm | Air | ||
| UV-5-A-AIO | 355 nm | 5 W @ 50 kHz | 1.2 <M² | 100 µJ @ 50 kHz | 8 kW | 20 - 150 kHz | 6.5 kg | 348.5 mm | 126.2 mm | 144.6 mm | Air | ||
| UV-10-A-AIO | 355 nm | 10 W @ 50 kHz | 1.25 <M² | 200 µJ @ 50 kHz | 10 kW | 40 - 150 kHz | 10.5 kg | 372.5 mm | 128 mm | 184 mm | Air |
