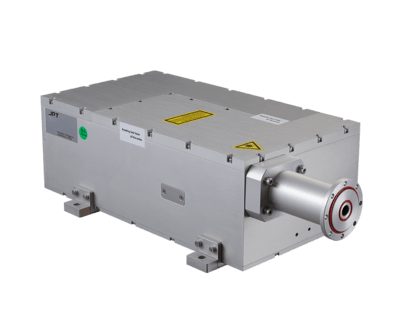

UV-30S-W-AIO
Laser > DPSS Laser > 355 nm | Water Cooled

UV-30S-W-AIO

• Compact All-in-One Design
• High absorption on sensitive materials for precise processing
• Ideal for fine cutting, drilling, structuring, marking, and engraving
Download Datasheet Request Information
Contact

Applications

Printed Circuit Boards
marking
engraving
cutting
structuring
Copper
marking
Plastics
marking
engraving
cutting
structuring
Glass/Crystal
marking
engraving
cutting
structuring
Ceramics
cutting
structuring

Technical Specifications

General
Wavelength355 nm
Mechanical Dimensions Width 205 mm
Mechanical Dimensions Depth 400 mm
Mechanical Dimensions Height 124 mm
Net Weight15 kg
Laser
Beam Quality1.2 <M²
Maximum Pulse Energy0.5 mJ @ 60 kHz
Maximum Pulse Peak Power30 kW
Nominal Output Power pulsed30 W @ 60 kHz
Adjustable Pulse WidthNo
Pulse Frequency40 - 300 kHz
Beam Diameter D4σ(only available with pre-installed beam expander 6x / 10x)0.8 mm
Laser Operation ModePulsed
Output TypeDirectbeam
Cooling / Temp.
Cooling MethodWater

355 nm | Water Cooled

Model NameWavelengthNominal Output Power pulsedBeam QualityMaximum Pulse EnergyMaximum Pulse Peak PowerPulse FrequencyNet WeightMechanical Dimensions Depth Mechanical Dimensions Height Mechanical Dimensions Width Cooling MethodInquiryDetail
UV-3C-W-AIO355 nm3 W @ 30 kHz1.2 <M²100 µJ @ 30 kHz8 kW20 - 150 kHz8.7 kg302 mm114 mm180 mmWater
UV-5C-W-AIO355 nm5 W @ 40 kHz1.2 <M²125 µJ @ 40 kHz10 kW20 - 150 kHz8.7 kg302 mm114 mm180 mmWater
UV-10S-W-AIO355 nm10 W @ 60 kHz1.2 <M²160 µJ @ 60 kHz15 kW40 - 300 kHz8.8 kg302 mm114 mm180 mmWater
UV-12S-W-AIO355 nm12 W @ 60 kHz1.2 <M²200 µJ @ 60 kHz20 kW40 - 300 kHz8.8 kg302 mm114 mm180 mmWater
UV-15S-W-AIO355 nm15 W @ 60 kHz1.2 <M²250 µJ @ 60 kHz25 kW40 - 150 kHz9.8 kg337 mm114 mm180 mmWater
UV-20S-W-AIO355 nm20 W @ 60 kHz1.2 <M²0.33 mJ @ 60 kHz20 kW40 - 300 kHz16 kg400 mm124 mm223 mmWater
UV-30S-W-AIO355 nm30 W @ 60 kHz1.2 <M²0.5 mJ @ 60 kHz30 kW40 - 300 kHz15 kg400 mm124 mm205 mmWater
