f-50T-10-1940

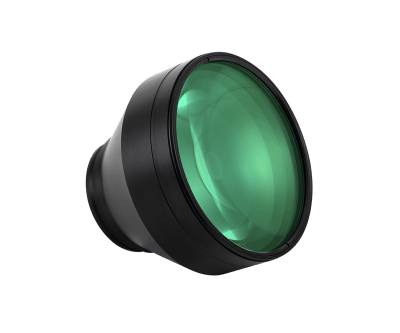

• Telecentric F-Theta Lens, 1940 nm
• Nominal focal length 50 mm
• Max. input beam diameter 10 mm
• Maximum working area 20 x 20 mm
• Nominal focal length 50 mm
• Max. input beam diameter 10 mm
• Maximum working area 20 x 20 mm
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 1940 nm |
| Maximum Input Beam Diameter | 10 mm |
| Anti-Reflective Coating | Standard |
| Optics | |
|---|---|
| Nominal Focal Length | 50 mm |
| Maximum Scan Field | 20 mm x 20 mm |
| Working Distance | 71.864 mm |
| Flange Focal Length | 88.264 mm |
| Minimum Spot Size | 22 μm |
| Mounting Thread | M85x1 |
| Lens Diameter | 62 mm |
| Telecentric Error | 1.133 ° |
| Lens Material | Fused Silica |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Air |
1940 nm | Fused Silica | Telecentric
| Model Name | Wavelength | Nominal Focal Length | Working Distance | Maximum Scan Field | Maximum Input Beam Diameter | Minimum Spot Size | Telecentric Error | Lens Material | Mounting Thread | Lens Diameter | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| f-50T-10-1940 | 1940 nm | 50 mm | 71.864 mm | 20 mm x 20 mm | 10 mm | 22 μm | 1.133 ° | Fused Silica | M85x1 | 62 mm | Air | ||
| f-100T-10-1940 | 1940 nm | 100 mm | 135.855 mm | 20 mm x 20 mm | 10 mm | 35.5 μm | 2.1 ° | Fused Silica | M85x1 | 130 mm | Air |
