f-100T-14-510-550-v2

f-100T-14-510-550-v2

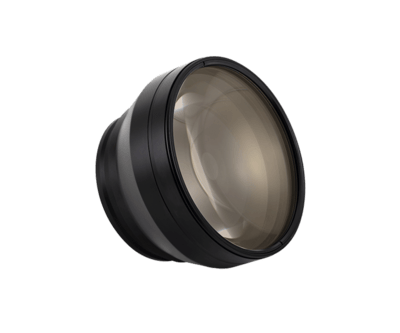

•Telecentric Fused Silica Lens
•Wavelength 510 - 550 nm
•Nominal focal length 100 mm
•Max. input beam diameter 14 mm
•Maximum working area 50 x 50 mm

Download Datasheet Request Information

Applications

Glass/Crystal
structuring

Copper
structuring

Silicon
structuring

Printed Circuit Boards
structuring

Plastics
structuring

Technical Specifications

General
Wavelength	510 - 550 nm
Maximum Input Beam Diameter	14 mm
Anti-Reflective Coating	Standard

Optics
Nominal Focal Length	100 mm
Maximum Scan Field	50 mm x 50 mm
Working Distance	133.000 mm
Flange Focal Length	207.000 mm
Minimum Spot Size	3.62 μm
Mounting Thread	M85x1
Lens Diameter	120 mm
Telecentric Error	2.1 °
Lens Material	Fused Silica

Cooling / Temp.
Cooling Method	Air

Model Name	Wavelength	Nominal Focal Length	Working Distance	Maximum Scan Field	Maximum Input Beam Diameter	Minimum Spot Size	Telecentric Error	Lens Material	Mounting Thread	Lens Diameter	Cooling Method	Inquiry	Detail
f-100T-14-510-550-v2	510 - 550 nm	100 mm	133.000 mm	50 mm x 50 mm	14 mm	3.62 μm	2.1 °	Fused Silica	M85x1	120 mm	Air
f-120T-10-510-550	510 - 550 nm	120 mm	166.741 mm	65 mm x 65 mm	10 mm	10.44 μm	20 °	Fused Silica	M85x1	10 mm	Air
f-161T-10-510-550	510 - 550 nm	161 mm	206.000 mm	75 mm x 75 mm	10 mm	7.608 μm	5.1 °	Fused Silica	M85x1	105 mm	Air
f-161T-14-510-550	510 - 550 nm	161 mm	206.000 mm	60 mm x 60 mm	14 mm	5.565 μm	4.1 °	Fused Silica	M85x1	105 mm	Air
f-167T-14-510-550	510 - 550 nm	167 mm	233.233 mm	86 mm x 86 mm	14 mm	11.61 μm	3 °	Fused Silica	M85x1	140 mm	Air
f-250T-14-510-550	510 - 550 nm	250 mm	361.810 mm	150 mm x 150 mm	14 mm	8.82 μm	1.8 °	Fused Silica		250 mm	Air
