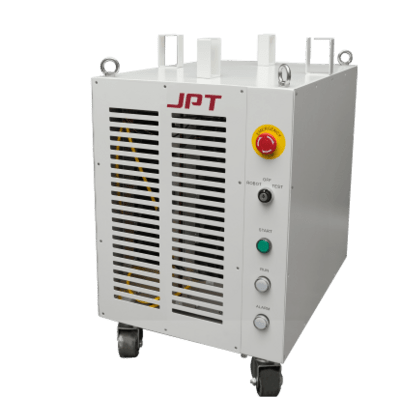

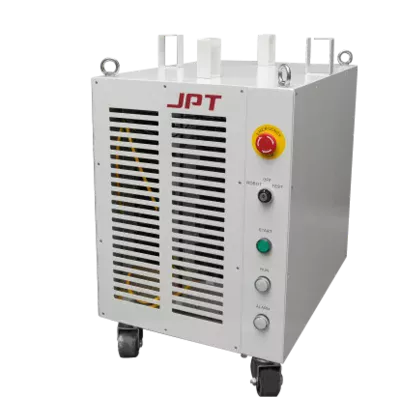

QCW-600/6000MM-L
• Versatile use for laser welding, drilling and demanding cutting applications
• High peak power for deep weld seams and processing of reflective materials
• Improved process control through short modulation times and pulse shaping
• High peak power for deep weld seams and processing of reflective materials
• Improved process control through short modulation times and pulse shaping
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 1080 nm |
| Mechanical Dimensions Width | 435 mm |
| Mechanical Dimensions Depth | 603 mm |
| Mechanical Dimensions Height | 715 mm |
| Net Weight | 121 kg |
| Laser | |
|---|---|
| Maximum Pulse Energy | 60 J |
| Maximum Pulse Peak Power | 6,000 W |
| Nominal Output Power pulsed | 600 W |
| Pulse Width | 0.01 - 10 ms |
| Modulation Frequency | 1 Hz - 5 kHz |
| Fiber Core Diameter | 100 µm |
| Fiber Length | 5 m |
| Laser Operation Mode | QCW |
| Aiming Beam | Standard |
| Output Type | QBH |
| Beam Parameter Product (BPP) (≤) | 4 mm*mrad |
| Nominal Output Power CW | 600 W |
| Power Tuning Range | 10 - 100 % |
| Power Supply | |
|---|---|
| Supply Voltage AC | 220 V |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Air |
QCW-Laser | Multimode
| Model Name | Wavelength | Nominal Output Power pulsed | Nominal Output Power CW | Beam Parameter Product (BPP) (≤) | Maximum Pulse Energy | Maximum Pulse Peak Power | Pulse Width | Modulation Frequency | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QCW-200/1000MM-L2 | 1080 nm | 100 W | 200 W | 2 mm*mrad / 4 mm*mrad / 6.4 mm*mrad | 10 J | 1,000 W | 0.01 - 10 ms | 1 Hz - 10 kHz | 15 kg | 288 mm | 129.5 mm | 257 mm | Air | ||
| QCW-150/1500MM-L | 1080 nm | 150 W | 250 W | 0.9 mm*mrad / 3.2 mm*mrad / 3.5 mm*mrad | 15 J | 1,500 W | 0.01 - 10 ms | 1 Hz - 10 kHz | 26.5 kg | 486 mm | 148 mm | 483 mm | Air | ||
| QCW-300/3000MM-L | 1080 nm | 300 W | 400 W | 0.9 mm*mrad / 3.2 mm*mrad / 3.5 mm*mrad | 30 J | 3,000 W | 0.01 - 10 ms | 1 Hz - 10 kHz | 38 kg | 483 mm / 561 mm | 148 mm | 483 mm / 561 mm | Air | ||
| QCW-450/4500MM-L | 1080 nm | 450 W | 450 W | 2.2 mm*mrad / 4 mm*mrad / 6.4 mm*mrad | 45 J | 4,500 W | 0.01 - 10 ms | 1 Hz - 10 kHz | 42 kg | 561 mm | 148 mm | 483 mm | Air | ||
| QCW-600/6000MM-L | 1080 nm | 600 W | 600 W | 4 mm*mrad | 60 J | 6,000 W | 0.01 - 10 ms | 1 Hz - 5 kHz | 121 kg | 603 mm | 715 mm | 435 mm | Air |
