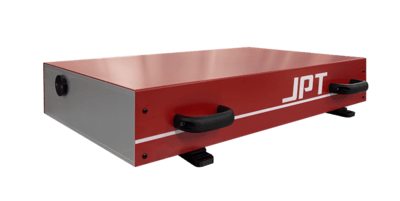

PS-IR-80-W-AIO
• Cold processing due to ultra-short pulses and minimal heat input
• High output power for fast processes without compromising precision
• For processing particularly hard, brittle, or heat-sensitive materials
• High output power for fast processes without compromising precision
• For processing particularly hard, brittle, or heat-sensitive materials
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 1064 nm |
| Mechanical Dimensions Width | 415 mm |
| Mechanical Dimensions Depth | 736 mm |
| Mechanical Dimensions Height | 149.5 mm |
| Net Weight | 60 kg |
| Anti-Reflective Coating | Standard |
| Laser | |
|---|---|
| Beam Quality | 1.3 <M² |
| Maximum Pulse Energy | 150 µJ @ 500 kHz |
| Maximum Pulse Peak Power | 15,000 kW |
| Nominal Output Power pulsed | 80 W |
| Pulse Frequency | 1 Hz - 2 MHz |
| Beam Diameter D4σ | 1.5 mm |
| Laser Operation Mode | Pulsed |
| Output Type | Directbeam |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Water |
1064 nm | Water Cooled
| Model Name | Wavelength | Nominal Output Power pulsed | Beam Quality | Maximum Pulse Energy | Maximum Pulse Peak Power | Pulse Frequency | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PS-IR-20-W-AIO | 1064 nm | 20 W | 1.3 <M² | 50 µJ @ 400 kHz | 5,000 kW | 1 Hz - 2 MHz | 55 kg | 732 mm | 140 mm | 416 mm | Water | ||
| PS-IR-30-W-AIO | 1064 nm | 30 W | 1.3 <M² | 75 µJ @ 400 kHz | 7,500 kW | 1 Hz - 1 MHz | 55 kg | 732 mm | 140 mm | 416 mm | Water | ||
| PS-IR-80-W-AIO | 1064 nm | 80 W | 1.3 <M² | 150 µJ @ 500 kHz | 15,000 kW | 1 Hz - 2 MHz | 60 kg | 736 mm | 149.5 mm | 415 mm | Water |
