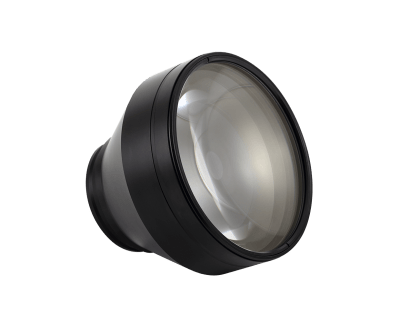

f-120T-10-510-550
•Telecentric Fused Silica Lens
•Wavelength 510 - 550 nm
•Nominal focal length 120 mm
•Max. input beam diameter 10 mm
•Maximum working area 65 x 65 mm
•Wavelength 510 - 550 nm
•Nominal focal length 120 mm
•Max. input beam diameter 10 mm
•Maximum working area 65 x 65 mm
Applications
Technical Specifications
General | |
---|---|
Wavelength | 510 - 550 nm |
Maximum Input Beam Diameter | 10 mm |
Anti-Reflective Coating | Standard |
Optics | |
---|---|
Nominal Focal Length | 120 mm |
Maximum Scan Field | 65 mm x 65 mm |
Working Distance | 166.741 mm |
Flange Focal Length | 245.324 mm |
Minimum Spot Size | 10.44 μm |
Mounting Thread | M85x1 |
Lens Diameter | 10 mm |
Telecentric Error | 20 ° |
Lens Material | Fused Silica |
Cooling / Temp. | |
---|---|
Cooling Method | Air |
510 - 550 nm | Fused Silica | Telecentric
Model Name | Wavelength | Nominal Focal Length | Working Distance | Maximum Scan Field | Maximum Input Beam Diameter | Minimum Spot Size | Telecentric Error | Lens Material | Mounting Thread | Lens Diameter | Cooling Method | Inquiry | Detail |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
f-100T-10-510-550 | 510 - 550 nm | 100 mm | 135.600 mm | 50 mm x 50 mm | 10 mm | 5.07 μm | 3 ° | Fused Silica | M85x1 | 105 mm | |||
f-100T-14-510-550 | 510 - 550 nm | 100 mm | 135.402 mm | 50 mm x 50 mm | 14 mm | 6.95 μm | 1.3 ° | Fused Silica | M85x1 | 120 mm | Air | ||
f-120T-10-510-550 | 510 - 550 nm | 120 mm | 166.741 mm | 65 mm x 65 mm | 10 mm | 10.44 μm | 20 ° | Fused Silica | M85x1 | 10 mm | Air | ||
f-167T-14-510-550 | 510 - 550 nm | 167 mm | 233.233 mm | 86 mm x 86 mm | 14 mm | 11.61 μm | 3 ° | Fused Silica | M85x1 | 140 mm | Air | ||
f-250T-14-510-550 | 510 - 550 nm | 250 mm | 361.810 mm | 150 mm x 150 mm | 14 mm | 8.82 μm | 1.8 ° | Fused Silica | M85x1 | 250 mm | Air |
