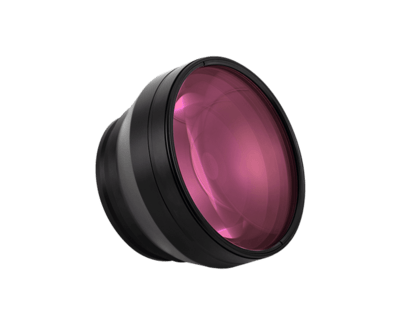

f-100T-14-266

• Telecentric Fused Silica Lens, 266 nm
• Nominal focal length 100 mm
• Max. input beam diameter 14 mm
• Maximum working area 30 x 30 mm

Ceramics
engraving
structuring

Cooling / Temp.
Cooling Method	Air

Model Name	Wavelength	Nominal Focal Length	Working Distance	Maximum Scan Field	Maximum Input Beam Diameter	Minimum Spot Size	Telecentric Error	Lens Material	Mounting Thread	Lens Diameter	Cooling Method
f-100T-10-266	266 nm	100 mm	141.740 mm	50 mm x 50 mm	10 mm	4.58 μm	1.9 °	Fused Silica	M85x1	112 mm	Air
f-100T-14-266	266 nm	100 mm	137.420 mm	30 mm x 30 mm	14 mm	3.25 μm	1.3 °	Fused Silica	M85x1	90 mm	Air
f-200T-14-266	266 nm	200 mm	269.108 mm	120 mm x 120 mm	14 mm	6.95 μm	3 °	Fused Silica	M85x1	213 mm	Air
f-300T-14-266	266 nm	300 mm	419.640 mm	175 mm x 175 mm	14 mm	11.32 μm	2.5 °	Fused Silica	M85x1	260 mm	Air
