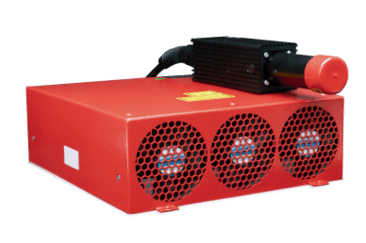

M7-E3-Series
The M7-E3 series defines the next generation of compact MOPA fiber lasers. It combines outstanding beam quality, dynamic response, and flexible pulse control in an especially small and lightweight design.
The M7-E3
models are specifically developed for applications where space, weight, and flexibility
in parameter settings play a decisive role. They can be seamlessly
integrated into mobile, space-saving, or even portable industrial laser
systems.
With pulse
energies up to 2 mJ, frequencies up to 4000 kHz, adjustable pulse widths from 2
to 500 ns, and peak pulse powers up to 5 kW, the models of the M7-E3-series enable
precise tuning of laser parameters to a wide range of materials and applications.
Explore
your possibilities with the M7-E3 series.
Plastics
Ceramics
Foils & Labels
and more
M7-E3-Series
| Model Name | Wavelength | Nominal Output Power pulsed | Beam Quality | Maximum Pulse Energy | Maximum Pulse Peak Power | Pulse Width | Pulse Frequency | Full Power Frequency | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M7-200M-E3 | 1064 nm | 200 W | 1.6 <M² | 1.5 mJ @ 500 ns | 5.5 kW | 2 - 500 ns | 1 - 4,000 kHz | 130 - 4,000 kHz | 7.5 kg | 295 mm | 92 mm | 255 mm | Air | ||
| M7-300M-E3 | 1064 nm | 300 W | 1.6 <M² | 1.57 mJ @ 500 ns | 5.5 kW | 2 - 500 ns | 1 - 4,000 kHz | 190 - 4,000 kHz | 8.1 kg | 255 mm | 92 mm | 295 mm | Air |
