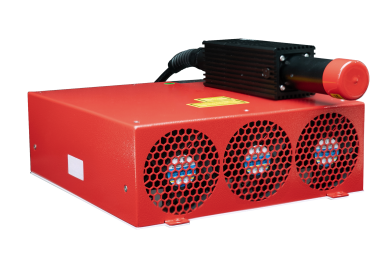

M7-300M-E3
• Extremely compact MOPA fiber laser under 9 kg. Ideal for mobile and
even portable laser systems
• Variable pulse widths for flexible adaptation to a wide range of applications and materials
• Excellent beam quality for precise industrial material processing
even portable laser systems
• Variable pulse widths for flexible adaptation to a wide range of applications and materials
• Excellent beam quality for precise industrial material processing
Applications
Technical Specifications
| General | |
|---|---|
| Wavelength | 1064 nm |
| Mechanical Dimensions Width | 295 mm |
| Mechanical Dimensions Depth | 255 mm |
| Mechanical Dimensions Height | 92 mm |
| Net Weight | 8.1 kg |
| Anti-Reflective Coating | Standard |
| Laser | |
|---|---|
| Beam Quality | 1.6 <M² |
| Maximum Pulse Energy | 1.57 mJ @ 500 ns |
| Maximum Pulse Peak Power | 5 kW |
| Nominal Output Power pulsed | 300 W |
| Pulse Width | 2 - 500 ns |
| Adjustable Pulse Width | Yes |
| Pulse Frequency | 1 - 4,000 kHz |
| Full Power Frequency | 190 - 4,000 kHz |
| Beam Diameter D4σ | 7 mm |
| Fiber Length | 5 m |
| Laser Operation Mode | Pulsed |
| Aiming Beam | Standard |
| Output Type | Collimator |
| Power Tuning Range | 0 - 100 % |
| Power Supply | |
|---|---|
| House Keeping Function | Standard |
| Cooling / Temp. | |
|---|---|
| Cooling Method | Air |
M7-E3-Series
| Model Name | Wavelength | Nominal Output Power pulsed | Beam Quality | Maximum Pulse Energy | Maximum Pulse Peak Power | Pulse Width | Pulse Frequency | Full Power Frequency | Net Weight | Mechanical Dimensions Depth | Mechanical Dimensions Height | Mechanical Dimensions Width | Cooling Method | Inquiry | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M7-200M-E3 | 1064 nm | 200 W | 1.6 <M² | 1.5 mJ @ 500 ns | 5 kW | 2 - 500 ns | 1 - 4,000 kHz | 130 - 4,000 kHz | 7.5 kg | 295 mm | 92 mm | 255 mm | Air | ||
| M7-300M-E3 | 1064 nm | 300 W | 1.6 <M² | 1.57 mJ @ 500 ns | 5 kW | 2 - 500 ns | 1 - 4,000 kHz | 190 - 4,000 kHz | 8.1 kg | 255 mm | 92 mm | 295 mm | Air |
